6% Moly and Titanium Crystallizer

Crystallizer Vapour Heater 540 m2 - TEMA AEM

Main dimensions:

  • Ø 1500 x 8000
  • nr 910 exchanger tubes Ø 31.75 x 0.89

Materials:

  • channel & bonnet: UNS N08926 - 6% Moly
  • exchanger tubes: Titanium Gr 12
  • tubesheets: SS316L + Titanium Gr 1 explowelded
  • Shell: SS316L

Stamp: 97/23 CE PED Mod. G cat III
Design code: EN13445

The heater is installed in a chemical plant near Budapest (Hungary) together with a Crystallizer Vapour Body Ø 2800 and some minor components integrally built in 6% Moly

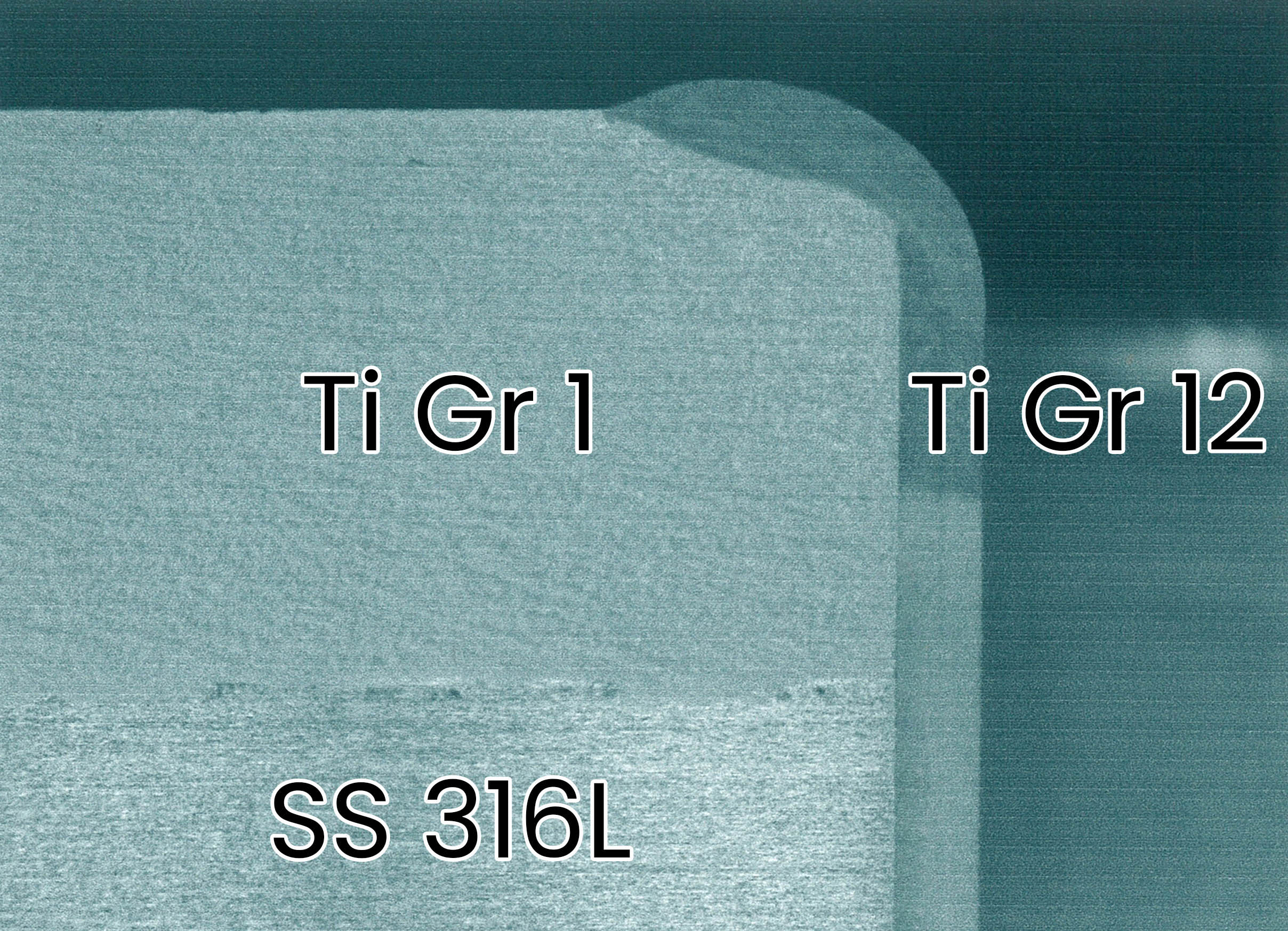

Tubes-to-tubesheets welded joint and macroexamination

Tubes-to-tubesheets hydraulic expansion @ 2000 bar~
